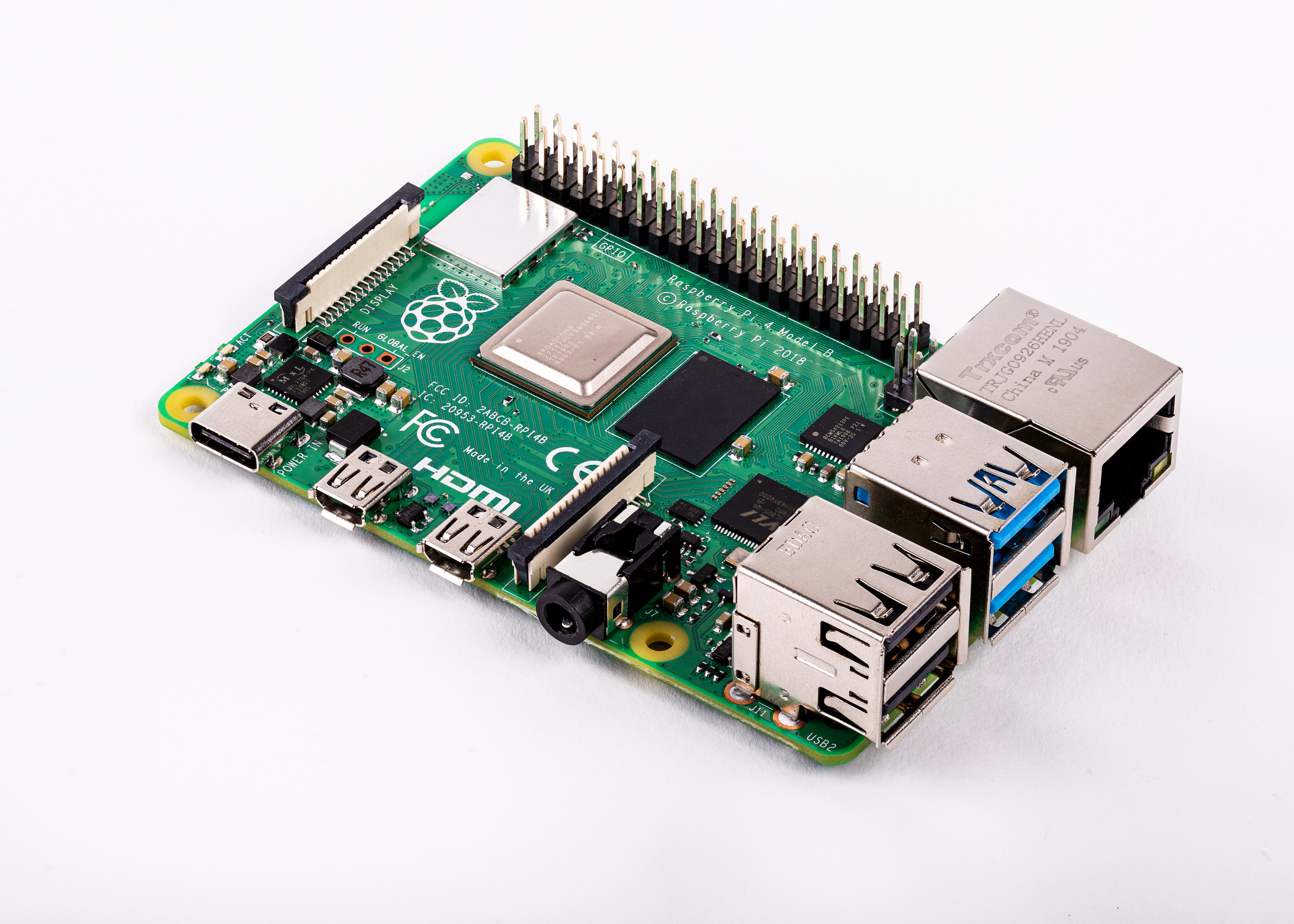

Raspberry Pi 4 model B 2 GB















Raspberry Pi 4 2 GB

Najnoviji proizvod u popularnoj paleti racunara Raspberry Pi. Nudi revolucionarno povecanje brzine procesora, multimedijalnih performansi, memorije i povezivanja u poređenju s prethodnom generacijom Raspberry Pi 3 Model B +, zadrzavajući kompatibilnost i slicnu potrosnju energije.

Specification

  • Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
  • 2GB  LPDDR4-2400 SDRAM
  • 2.4 GHz and 5.0 GHz IEEE 802.11ac wireless 2×2 MIMO
  • Bluetooth 5.0, BLE
  • Gigabit Ethernet ( Full 1Gbps speed !)
  • 2 USB 3.0 ports
  • 2 USB 2.0 ports.
  • Raspberry Pi standard 40 pin GPIO header (fully backwards compatible with previous boards)
  • 2 × micro-HDMI ports (up to 4kp60 supported)
  • 2-lane MIPI DSI display port
  • 2-lane MIPI CSI camera port
  • 4-pole stereo audio and composite video port
  • H.265 (4kp60 decode), H264 (1080p60 decode, 1080p30 encode)
  • OpenGL ES 3.0 graphics
  • Micro-SD card slot for loading operating system and data storage
  • 5V DC via USB-C connector (minimum 3A*)
  • 5V DC via GPIO header (minimum 3A*)
  • Power over Ethernet (PoE) enabled (requires separate PoE HAT)
  • Operating temperature: 0 – 50 degrees C ambient

Raspberry Pi 4 offers ground-breaking increases in processor speed, multimedia performance, memory and connectivity compared to the prior-generation Raspberry Pi 3 Model B+, while retaining backwards compatibility and similar power consumption. For the end user, This model of Raspberry Pi provides desktop performance comparable to entry-level x86 PC systems. Raspberry Pi’s key features include a high-performance 64-bit quad-core processor, dual-display support at resolutions up to 4K via a pair of micro-HDMI ports, hardware video decode at up to 4Kp60, 2GB of RAM, dual-band 2.4/5.0GHz wireless LAN, Bluetooth 5.0, Gigabit Ethernet, USB 3.0 and PoE capability (via a separate PoE HAT add-on). The dual-band wireless LAN and Bluetooth have modular compliance certification, allowing the board to be designed into end products with significantly reduced compliance testing, improving both cost and time to market.

Applications

Embedded Design & Development, Hobby & Education, IoT (Internet of Things), Communications & Networking

Contents

Raspberry Pi 4  Model B Board only
